Introduction
The "Codeframes" panel in the Project Details page shows a list of the Codeframes in use within your Project.
In this panel, you can view the different properties of your Codeframes.
Accessing the Codeframes Panel

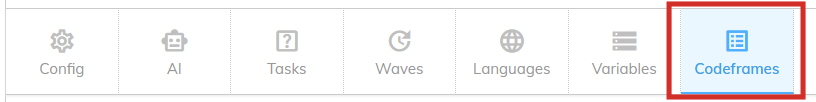

To access the Codeframes panel, click the "Codeframes" icon in the the ribbon of the Project Details page:
Panel Fields
The following properties are available in the Codeframes panel
| Field | Description |
|---|---|
| Codeframe | The unique name that identifies a Codeframe within a Project. Clicking on the Codeframe will open the Codeframe Settings panel |
| Nets | Counts of the number of Nets within the Codeframe |
| Items | Counts of the number of Items within the Codeframe |
| Read-Only | Shows if the Codeframe is read-only. When a codeframe is read-only, it cannot be edited in the coding screens. |
| Shared | Shows if the Codeframe is shared between different Variables |
| In Library | Displays if the Codeframe has been added to the Codeframe Library |
| In Edit Mode (Locked) | Displays if a user is currently editing the Codeframe in the coding screen. |
| Generated by themeit | Displays if the Codeframe has been generated by the Theme Extraction process in codeit |
| Edit | Allows you to edit the Codeframes Settings, or to delete the codeframe if it is not in use in a Variable |
